Spatial Calibration of Diffuse LiDARs

Technical Report
Nikhil
Behari
Ramesh
Raskar
Massachusetts Institute of Technology
Paper Code
Diffuse LiDAR calibration teaser

Spatial calibration of diffuse LiDARs. Unlike conventional LiDARs, each pixel of a diffuse direct time-of-flight sensor aggregates photon returns over a wide instantaneous field of view, mixing returns from different scene regions in a single histogram. We recover, for each pixel, its effective support region and relative spatial sensitivity in a co-located RGB image.

Abstract

Diffuse direct time-of-flight LiDARs report per-pixel depth histograms formed by aggregating photon returns over a wide instantaneous field of view, violating the single-ray assumption behind standard LiDAR-RGB calibration. We present a simple spatial calibration procedure that estimates, for each diffuse LiDAR pixel, its footprint (effective support region) and relative spatial sensitivity in a co-located RGB image plane. Using a scanned retroreflective patch with background subtraction, we recover per-pixel response maps that provide an explicit LiDAR-to-RGB correspondence for cross-modal alignment and fusion. We demonstrate the method on the ams OSRAM TMF8828.

Hardware and rigid mount

TMF8828 pixel aggregation modes

Pixel aggregation modes on the TMF8828. The sensor supports multiple spatial aggregation layouts; in each mode, reported pixels integrate photon returns over a wide instantaneous field of view under flood illumination. Our example calibration uses 3×3 Wide mode (P = 9).

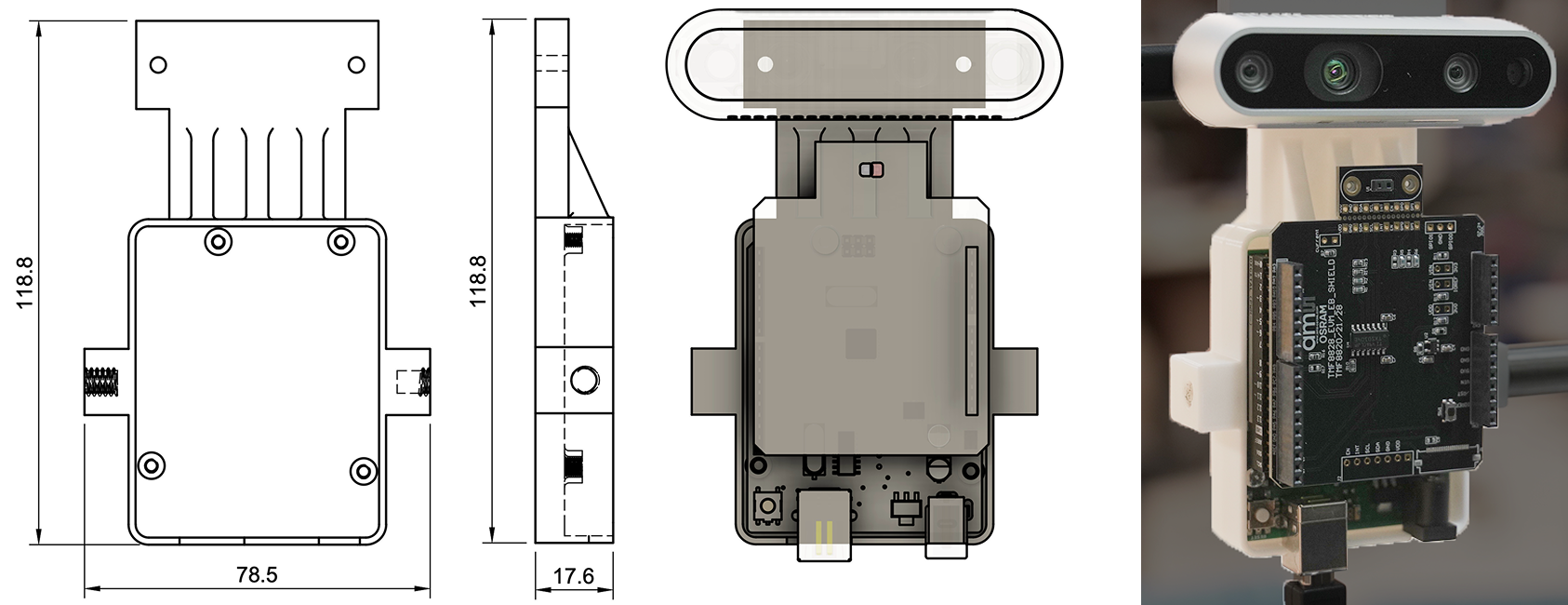

Custom rigid sensor mount

Custom rigid mount for co-located diffuse LiDAR (TMF8828) and RGB (RealSense D435i). Left: CAD design with dimensions; right: the physical mount used for our calibration captures. STLs are included in the repository's assets/.

Calibration scan

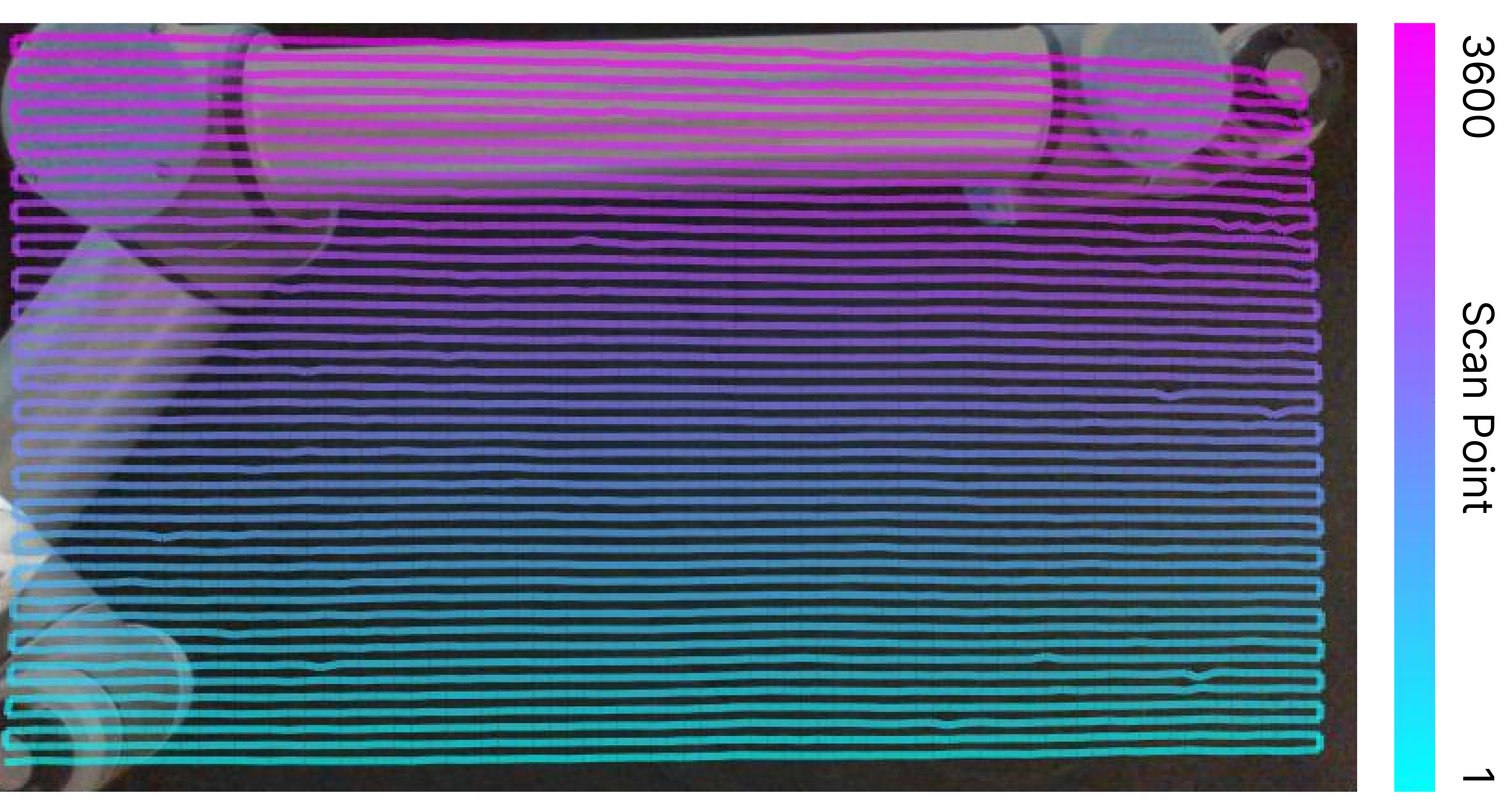

Retroreflective patch scan grid

Retroreflective patch scan grid sampled with a UR10 robot arm. We traverse an 80×45 grid (K = 3600) in a snake pattern to reduce motion between points. At each grid location we record synchronized RGB frames and per-pixel LiDAR histograms; an identical patch-removed scan is captured for background subtraction.

Per-pixel spatial response

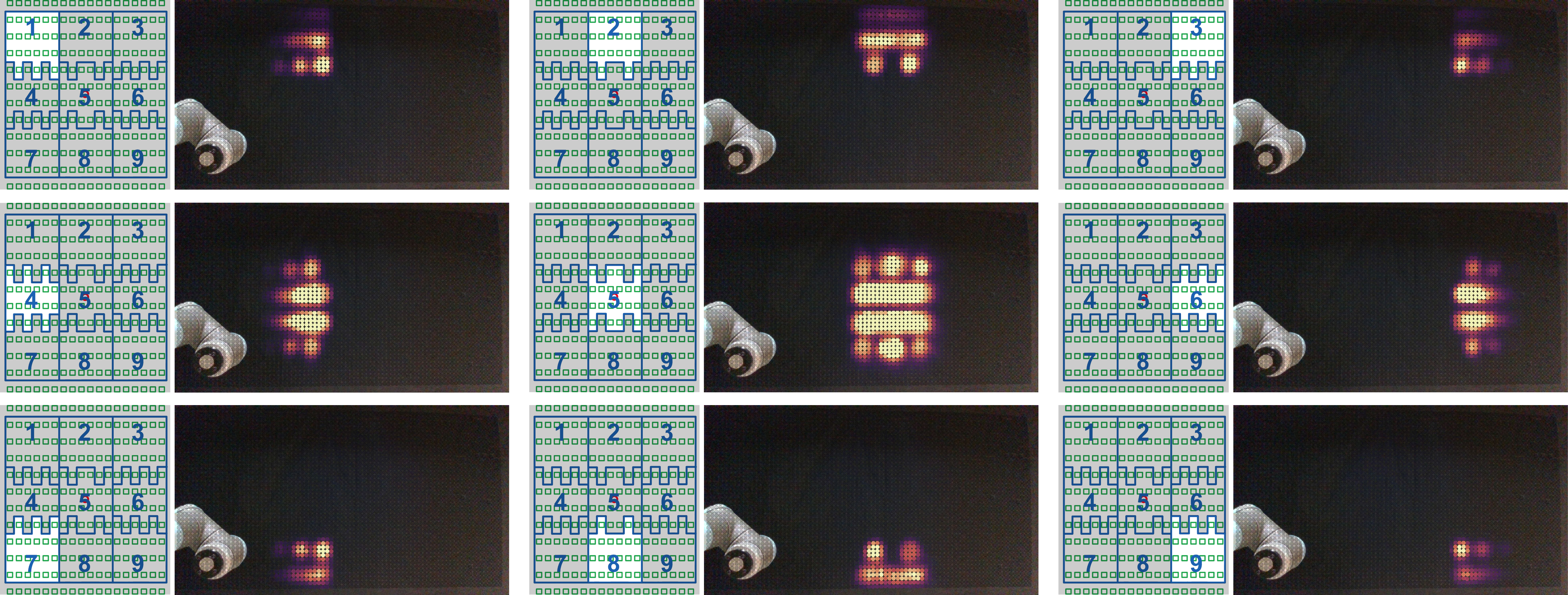

Per-pixel response maps overlaid on RGB

Per-pixel spatial response maps for the TMF8828 3×3 Wide mode overlaid on the co-located RGB image. Nonzero regions show each pixel's effective support in RGB coordinates, and the response magnitudes encode relative spatial sensitivity within that support.

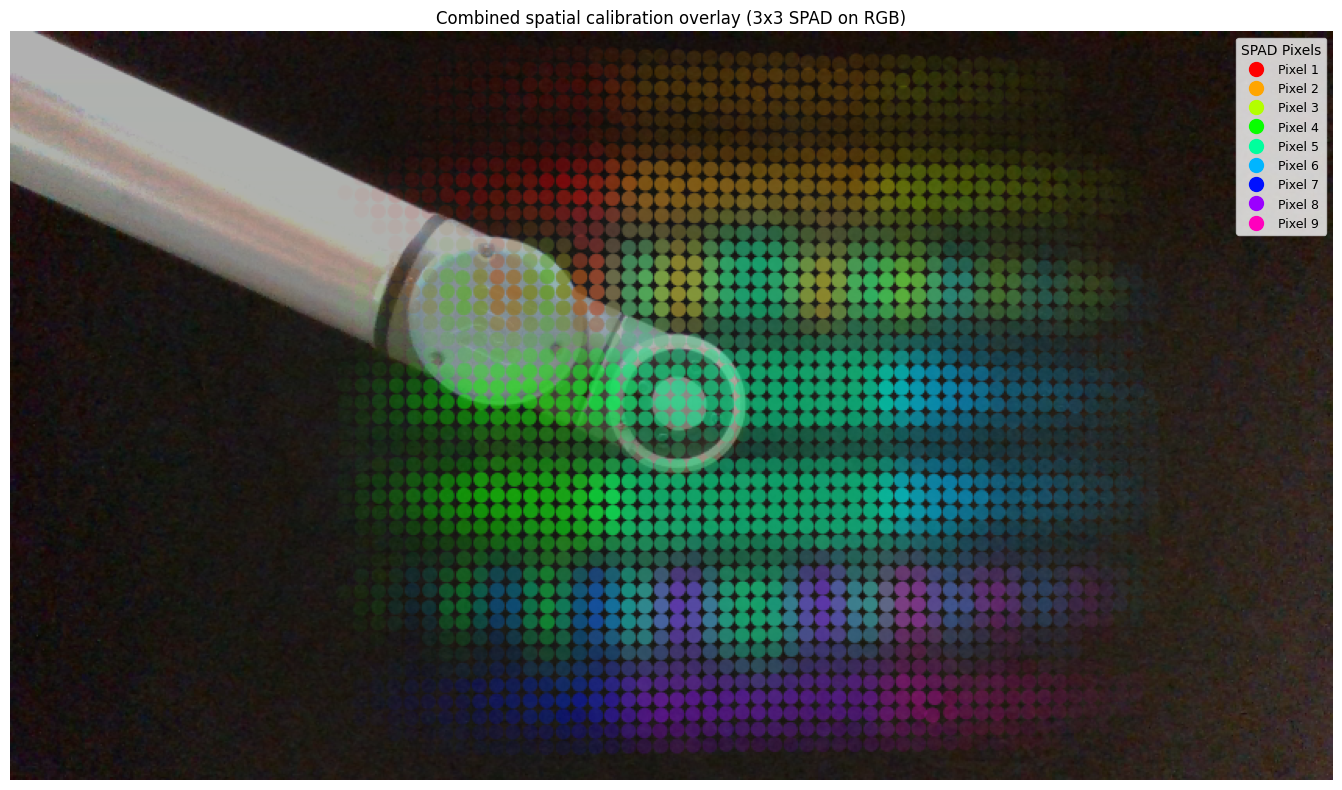

Calibration output overlay

Calibration applied at inference. Per-pixel response maps from the self-contained demo.ipynb notebook visualized over a sample RealSense frame. The released capture_with_overlay.py tool runs the same visualization live against a connected sensor.
